Special Design Transformer

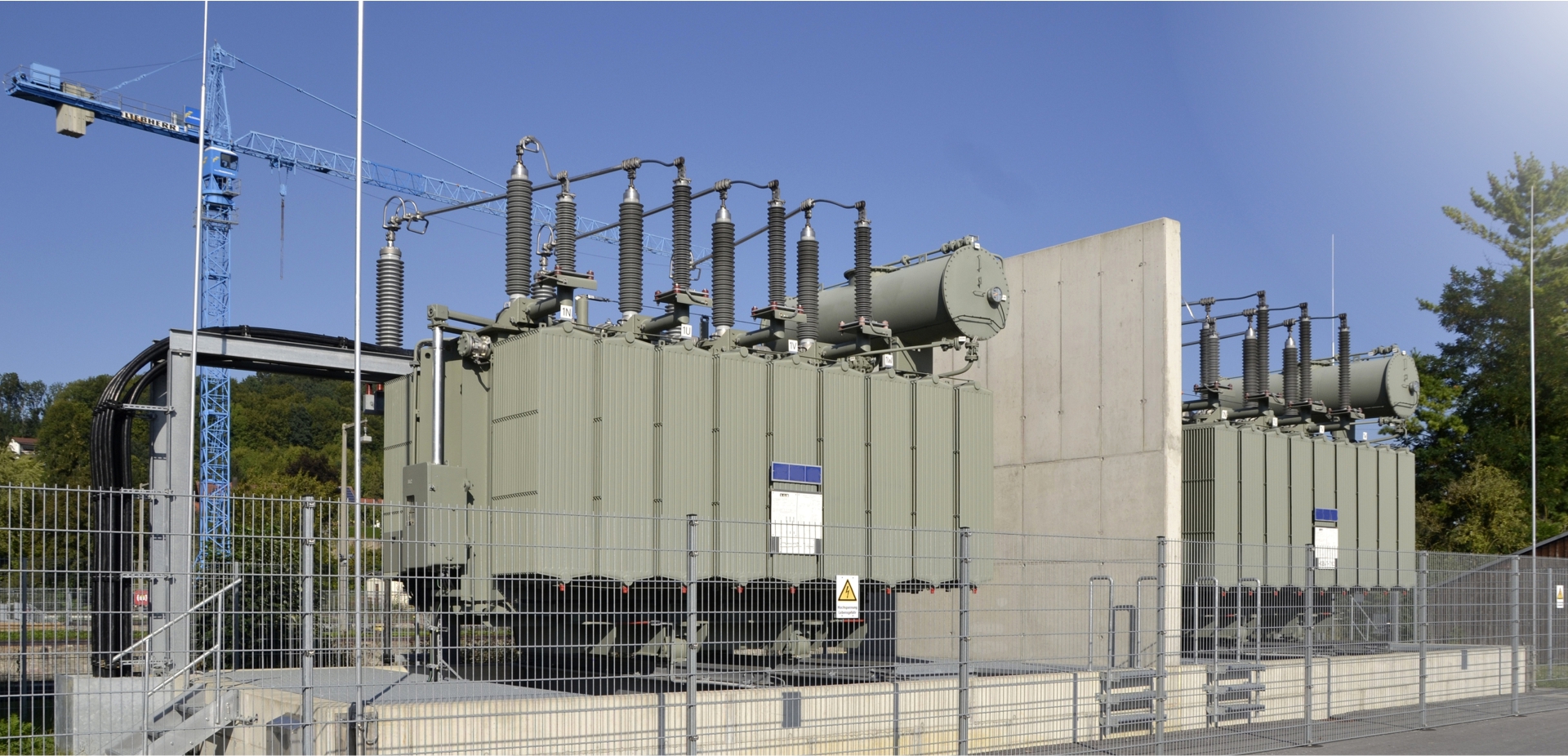

Special Desing Transformer.jpg
Special Desing Transformer.jpg

Special design transformers are customized or unique transformers that are tailored to specific applications, requirements, or constraints. These transformers are designed to meet specialized needs that standard off-the-shelf transformers might not address effectively. Here are some points to consider:

Customization: Special design transformers are built to order, considering factors such as voltage, power, frequency, cooling methods, insulation classes, and more.

Applications: These transformers are used in industries or scenarios where standard transformers may not suffice due to specific conditions, environmental factors, or requirements.


Information for special design transformers will vary based on the manufacturer and the specific transformer type, but it might include the following:

Transformer Type: Description of the transformer's unique features or design.

Application: Details about the intended use or industry.

Power Rating: kVA or MVA capacity.

Voltage Ratings: Primary and secondary voltage levels.

Frequency: Operating frequency.

Cooling Method: Cooling system specifications (e.g., air-cooled, water-cooled).

Temperature Class: Maximum temperature rise allowed for the transformer.

Enclosure Type: NEMA or IP ratings for protection against environmental conditions.

Winding Material: Copper or Aluminium windings.

Insulation Class: Insulation system's temperature rating.


Special Features: Isolation Transformers, Auto Transformers, Earthing Transformers, Convertor Duty Transformers, Rectifier Transformers – 6 – 12 – 24 pulse, with specific voltage regulation capabilities.

Remember that transformer safety, compliance with electrical standards, and proper engineering practices are critical when dealing with any type of transformer, especially special design ones. Always consult with professionals in the field for guidance and assistance.
